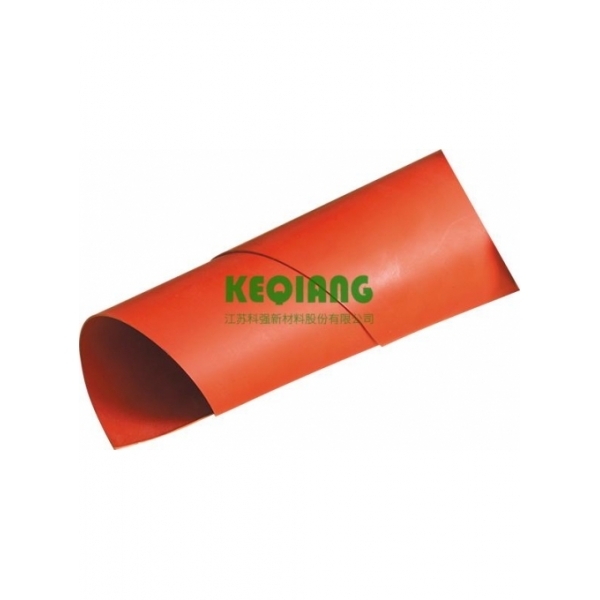

Hypalon fabric
- Direct supply from the manufacturer
- Order phone：+86-510-86013920
- E-mail：shenjia@keqiangtape.com
Detail
Application:
Hypalon fabric is widely used for inflatable boats, outdoor tents, inflatable pools, oil booms, automobiles, trains, windshield tarpaulins, etc.
Product performance:
1. Anti-UV, anti-oxidation, high temperature and cold resistance, durable
2. Super tensile, tear and peel resistance characteristics
3. High air tightness, wear resistance, strong impact resistance
4. Mildew and antibacterial, oil and stain resistant, acid and alkali resistant
5.Can be made into a brighter colored fabric, not easy to fade
HYPALON FABRIC FOR inflatable boats (RIB)
Base fabric: Polyester High Tenacity 1100 dtex
External coating: Chlorosulfonated Polyethylene(CSM)/Neoprene(CR)
Internal coating : Neoprene(CR)/SBR
1.0mm hypalon 1100Dtex technical specifications
|
Test Item |
Technical specifications |
Test Standard |
|
|
Tensile Strength (N/5cm) |
warp |
≥3500 |
HG/T 2580-2008 |
|
weft |
≥3500 |
||
|
Tearing Strength(N) |
warp |
≥200 |
HG/T 2581.1-2008 |
|
weft |
≥160 |
||
|
Thickness (mm) |
1.0±0.05 |
HG/T 3050.3-2001 |
|
|
Weight (g/m2) |
1300±60 |
GB/T 31334.6-2020 |
|
|
Peeling Adhesion (N/5cm) |
≥150 |
GB/T 6759-2013 |
|
|
Weft Distortion (mm/m) |
≤20 |
Ruler Measure |
|
|
Air Permeability (36kPa;5min) |
Airtight |
HG6 1258-79 |
|
HYPALON FABRIC FOR inflatable boats (RIB)
Base fabric: Polyester High Tenacity 1670 dtex
External coating: Chlorosulfonated Polyethylene(CSM)/Neoprene(CR)
Internal coating: Neoprene(CR)/SBR
1.2mm hypalon 1670Dtex technical specifications
|
Test Item |
technical specifications |
Test Standard |
|
|
Tensile Strength (N/5cm) |
warp |
≥5000 |
HG/T 2580-2008 |
|
weft |
≥4800 |
||
|
Tearing Strength(N) |
warp |
≥330 |
HG/T 2581.1-2008 |
|
weft |
≥350 |
||
|
Thickness (mm) |
1.2±0.05 |
HG/T 3050.3-2001 |
|
|
Weight (g/m2) |
1500±80 |
GB/T 31334.6-2020 |
|
|
Peeling Adhesion (N/5cm) |
≥150 |
GB/T 6759-2013 |
|
|
Weft Distortion (mm/m) |
≤20 |
Ruler Measure |
|
|
Air Permeability (36kPa;5min) |
Airtight |
HG6 1258-79 |
|

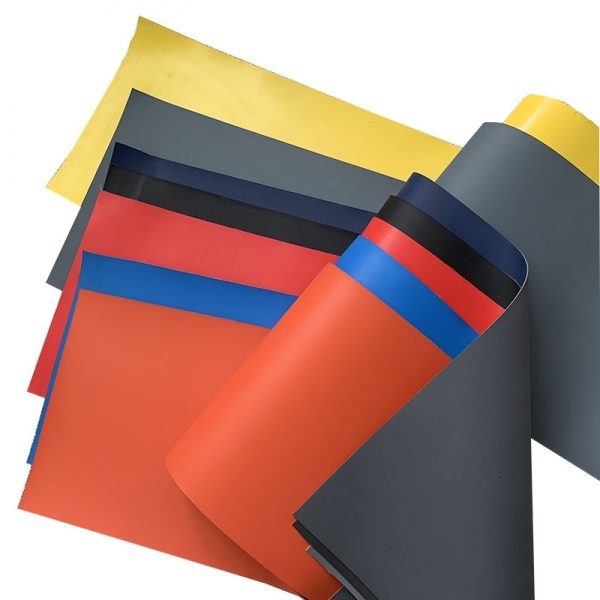

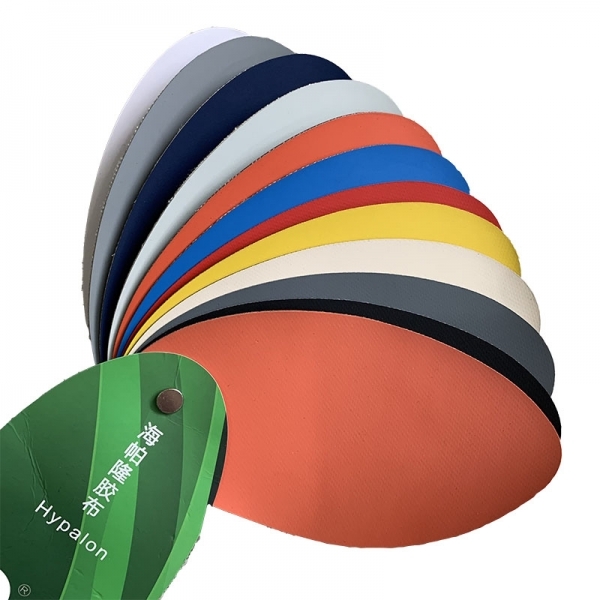

Available colors:
Hypalon surface color : dark gray、medium gray、light gray、black、white、yellow、red、blue、dark blue、army green、orange (Special colors can be customized)
Neoprene back color : gray
Width and length of each roll:
1.5 meters width, 50 meters length (special size can be customized)
Surface of the product:
clean,free of impurities, bubbles,or dirty, etc., no joint
